M-200VG Fan at 1000rpm
| Max flow: | 1580m³/h | MOTOR | |
| Max pressure: | 35mmca | Power supply: | 230-400v |
| Inlet diameter: | 250mm | Power: | 0.37kW |
| Outlet diameter: | 200mm | RPM: | 950 |
| Blade orientation: | Forward | No. poles: | 6 |
| Casing and turbine material: | PP | Efficiency level: | IE2 |
| Weight: | 23Kg | Protection: | IP55 |
| Sound pressure: | 62 dB | Anchoring: | B5 |
| *With free output at 1.5m. | |||
M-200VG Fan at 1500rpm
| Max flow: | 2400 m³/h | MOTOR | |
| Max pressure: | 73mmca | Power supply: | 230-400v |
| Inlet diameter: | 250mm | Power: | 0.55kW |
| Outlet diameter: | 200mm | RPM: | 1400 |
| Blade orientation: | Forward | No. poles: | 4 |
| Casing and turbine material: | PP | Efficiency level: | IE2 |
| Weight: | 23Kg | Protection: | IP55 |
| Sound pressure: | 77 dB | Anchoring: | B5 |
| *With free output at 1.5m. | |||

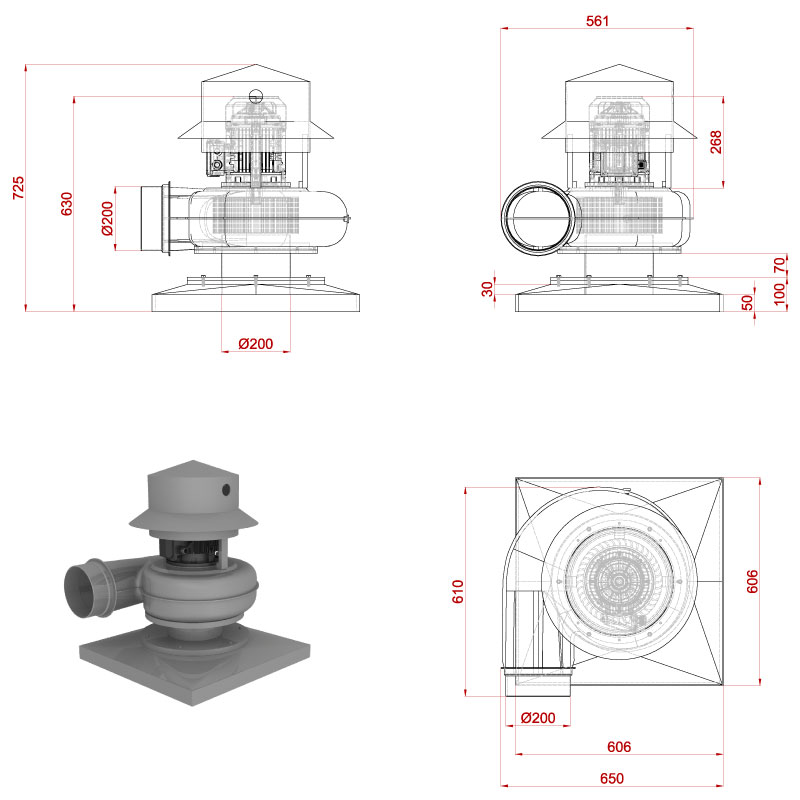

FAN DIMENSIONS
FLOW MODEL FAN
Fan accessories
Frequency inverter
Wall mounting bracket
Floor mounting bracket
Anti-bird grid
Expansion hat
Engine cover
Inspection register
Anti-vibration
Soundproof box
Fender grille
Coupling flange
Electrical panel
Isolator switch
Ventilation pipes and accessories
Flexible Sleeve
Flexible sleeve corrugated
Flexible Ventilation hose
Strap Clamp
Volume control damper
Volume control damper motorized 0º-90º
Flap trap
Reductions
T-Pieces 90º
T-Pieces 45º
End caps
Trims
Umbrella. Rain protection
Rod roll
Sampling piece
Differential pressure probes
Intumescent rings
Fire dampers
Silencer
Table of power values
M SERIES PP STANDARD ROOF
| Description | Turbine speed (r.p.m.) | Motor power (kW) | Max. flow rate (m³/h) | Max. pressure (mmca) | Sound pressure level (dB)* | Weight (Kg) | Max. intensity 400v (A) |
|---|---|---|---|---|---|---|---|
| Fan PP M-75 at 1500 rpm | 1,400 | 0.06 | 110 | 6 | 62 | 4.0 | 0.3 |
| Fan PP M-75 at 3000 rpm | 2,800 | 0.09 | 210 | 25 | 62 | 4.0 | 0.3 |
| Fan PP M-140 at 1500 rpm | 1,400 | 0.06 | 400 | 35 | 63 | 6.0 | 0.8 |
| Fan PP M-140 at 3000 rpm | 2,800 | 0.09 | 580 | 52 | 72 | 6.0 | 0.3 |
| Fan PP M-160 at 1500 rpm | 1,400 | 0.25 | 775 | 20 | 68 | 11.0 | 0.8 |
| Fan PP M-160 at 3000 rpm | 2,800 | 0.37 | 1,000 | 87 | 81 | 11.0 | 1.0 |
| Fan PP M-160 at 3000 rpm Plus | 2,800 | 0.75 | 1,690 | 87 | 86 | 11.0 | 1.7 |
| Fan PP M-200 at 1000 rpm | 950 | 0.25 | 1,500 | 15 | 54 | 11.0 | 0.8 |
| Fan PP M-200 at 1500 rpm | 1,400 | 0.37 | 2,200 | 38 | 70 | 11.0 | 1.0 |
| Fan PP M-200 at 3000 rpm | 2,800 | 1.50 | 2,400 | 155 | 81 | 22.5 | 2.9 |
| Fan PP M-200 at 3000 rpm Plus | 2,800 | 2.20 | 3,300 | 155 | 90 | 22.5 | 4.4 |
| Fan PP M-200VG at 1000 rpm | 950 | 0.37 | 1,580 | 35 | 62 | 24.5 | 1.1 |
| Fan PP M-200VG at 1500 rpm | 1,400 | 0.55 | 2,400 | 73 | 77 | 22.0 | 1.4 |
*Sound pressure with free output at 1.5m.
