Fan-model M-200 Roof
High flow and pressure performance
Medium-sized fan used for extraction from fume cupboards. For individual fume cupboard extractions it offers reduced power use and is extremely low-noise with its 4 and 6-pole configurations. The 3000rpm configuration offers high flow and pressure performance for more complex extractions with higher load requirements
M-200 Fan at 1000rpm
| Max flow: | 1500 m³/h |
| Max pressure: | 15mmca |
| Inlet diameter: | 200mm |
| Outlet diameter: | 200mm |
| Blade orientation: | Forward |
| Casing and turbine material: | PP |
| Weight: | 15,2Kg |
| Sound pressure: | 54 dB |
| *With free output at 1.5m. | |
| MOTOR | |
| Power supply: | 230-400v |
| Power: | 0.25kW |
| RPM: | 950 |
| No. poles: | 6 |
| Efficiency level: | IE2 |
| Protection: | IP55 |
| Anchoring: | B5 |
M-200 Fan at 1500rpm
| Max flow: | 2200 m³/h |
| Max pressure: | 38mmca |
| Inlet diameter: | 200mm |
| Outlet diameter: | 200mm |
| Blade orientation: | Forward |
| Casing and turbine material: | PP |
| Weight: | 15,9Kg |
| Sound pressure: | 70 dB |
| *With free output at 1.5m. | |
| MOTOR | |
| Power supply: | 230-400v |
| Power: | 0.37kW |
| RPM: | 1400 |
| No. poles: | 4 |
| Efficiency level: | IE2 |
| Protection: | IP55 |
| Anchoring: | B5 |
M-200 Fan at 3000rpm
| Max flow: | 2400 m³/h |
| Max pressure: | 155mmca |
| Inlet diameter: | 200mm |
| Outlet diameter: | 200mm |
| Blade orientation: | Forward |
| Casing and turbine material: | PP |
| Weight: | 23,5Kg |
| Sound pressure: | 81 dB |
| *With free output at 1.5m. | |
| MOTOR | |
| Power supply: | 230-400v |
| Power: | 1.5kW |
| RPM: | 2800 |
| No. poles: | 2 |
| Efficiency level: | IE3 |
| Protection: | IP55 |
| Anchoring: | B5 |
M-200 Fan at 3000rpm Plus
| Max flow: | 3300 m³/h |
| Max pressure: | 155mmca |
| Inlet diameter: | 200mm |
| Outlet diameter: | 200mm |
| Blade orientation: | Forward |
| Casing and turbine material: | PP |
| Weight: | 25,5 Kg |
| Sound pressure: | 90 dB |
| *With free output at 1.5m. | |
| MOTOR | |
| Power supply: | 230-400v |
| Power: | 2.2kW |
| RPM: | 2800 |
| No. poles: | 2 |
| Efficiency level: | IE3 |
| Protection: | IP55 |
| Anchoring: | B5 |
FLOW MODEL FAN
M200 – 1000/1500

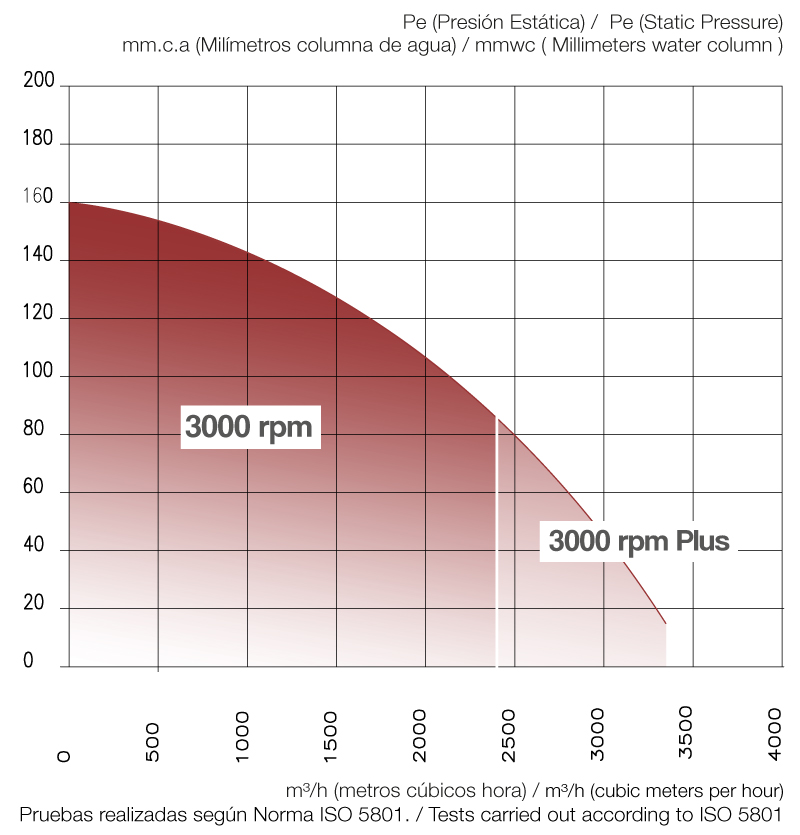

FLOW MODEL FAN
M200 – 3000/3000 Plus

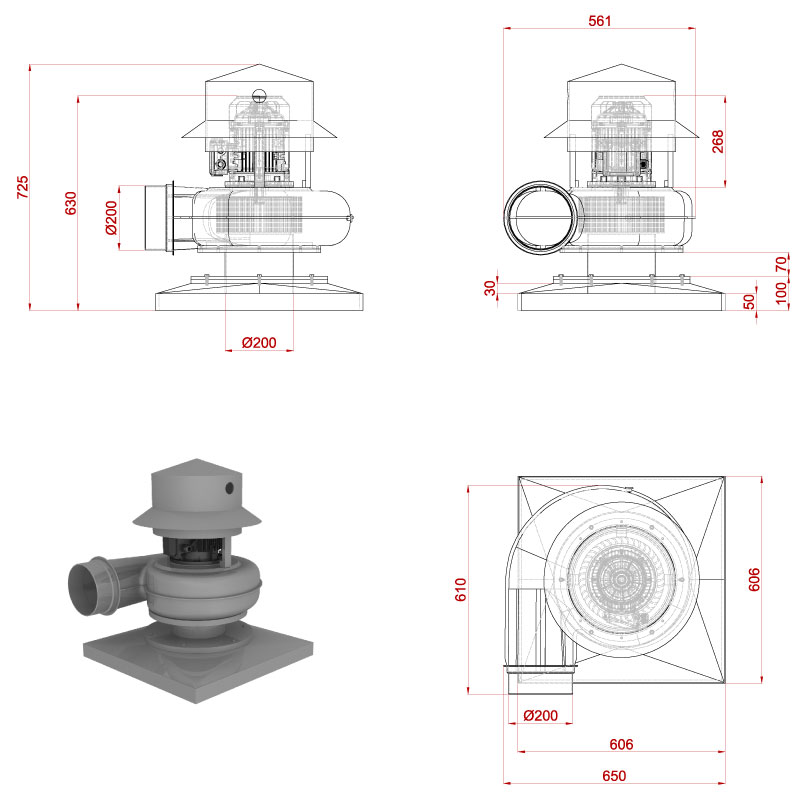

FAN DIMENSIONS
Fan accessories
Frequency inverter
Wall mounting bracket
Floor mounting bracket
Anti-bird grid
Expansion hat
Engine cover
Inspection register
Anti-vibration
Soundproof box
Fender grille
Coupling flange
Electrical panel
Isolator switch
Ventilation pipes and accessories
Flexible Sleeve
Flexible sleeve corrugated
Flexible Ventilation hose
Strap Clamp
Volume control damper
Volume control damper motorized 0º-90º
Flap trap
Reductions
T-Pieces 90º
T-Pieces 45º
End caps
Trims
Umbrella. Rain protection
Rod roll
Sampling piece
Differential pressure probes
Intumescent rings
Fire dampers
Silencer
Table of power values
M SERIES PP STANDARD ROOF
| Description | Turbine speed (r.p.m.) | Motor power (kW) | Max. flow rate (m³/h) | Max. pressure (mmca) | Sound pressure level (dB)* | Weight (Kg) | Max. intensity 400v (A) |
|---|---|---|---|---|---|---|---|
| Fan PP M-75 at 1500 rpm | 1,400 | 0.06 | 110 | 6 | 62 | 4.0 | 0.3 |
| Fan PP M-75 at 3000 rpm | 2,800 | 0.09 | 210 | 25 | 62 | 4.0 | 0.3 |
| Fan PP M-140 at 1500 rpm | 1,400 | 0.06 | 400 | 35 | 63 | 6.0 | 0.8 |
| Fan PP M-140 at 3000 rpm | 2,800 | 0.09 | 580 | 52 | 72 | 6.0 | 0.3 |
| Fan PP M-160 at 1500 rpm | 1,400 | 0.25 | 775 | 20 | 68 | 11.0 | 0.8 |
| Fan PP M-160 at 3000 rpm | 2,800 | 0.37 | 1,000 | 87 | 81 | 11.0 | 1.0 |
| Fan PP M-160 at 3000 rpm Plus | 2,800 | 0.75 | 1,690 | 87 | 86 | 11.0 | 1.7 |
| Fan PP M-200 at 1000 rpm | 950 | 0.25 | 1,500 | 15 | 54 | 11.0 | 0.8 |
| Fan PP M-200 at 1500 rpm | 1,400 | 0.37 | 2,200 | 38 | 70 | 11.0 | 1.0 |
| Fan PP M-200 at 3000 rpm | 2,800 | 1.50 | 2,400 | 155 | 81 | 22.5 | 2.9 |
| Fan PP M-200 at 3000 rpm Plus | 2,800 | 2.20 | 3,300 | 155 | 90 | 22.5 | 4.4 |
| Fan PP M-200VG at 1000 rpm | 950 | 0.37 | 1,580 | 35 | 62 | 24.5 | 1.1 |
| Fan PP M-200VG at 1500 rpm | 1,400 | 0.55 | 2,400 | 73 | 77 | 22.0 | 1.4 |
*Sound pressure with free output at 1.5m.
