Designed to provide a safe, corrosion-resistant workspace

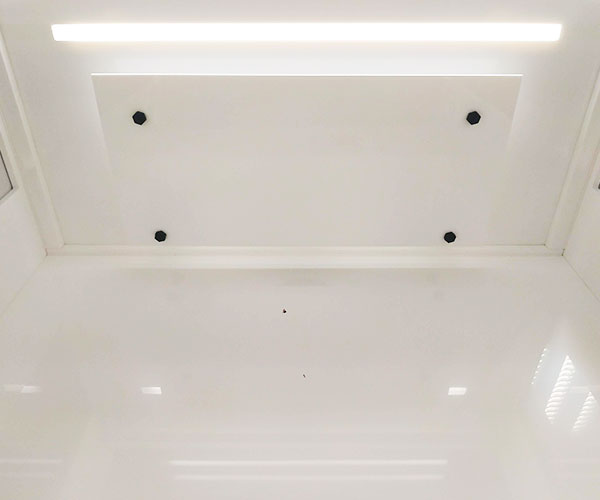

Closures made of Opaque white polypropylene (PP-H) with front guillotine opening. Tabletop unit with external dimensions: 1700mm height, 750-1500mm depth. Widths available from 900 to 2400mm Flat aspiration diffuser in the upper part made of polypropylene to generate a homogeneous airflow inside the cabinet. Outlet at the top, diameter 200/250/315mm depending on the size of the equipment. The plastic material makes the Housing very resistant to chemical damage. The transparent areas are made of polycarbonate (PC). It is recommended that elements at temperatures above 90ºC do not come into contact with the polypropylene profile.

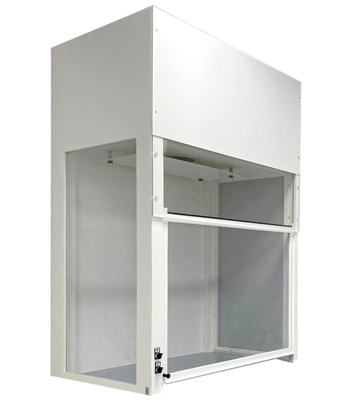

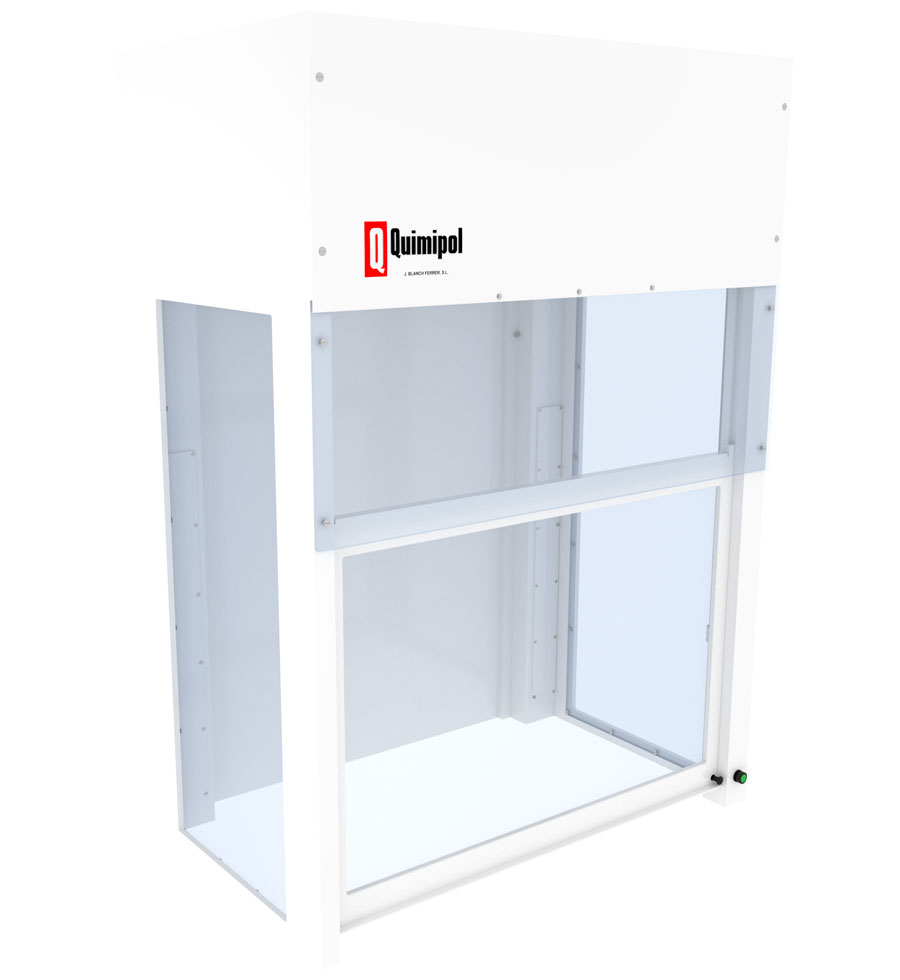

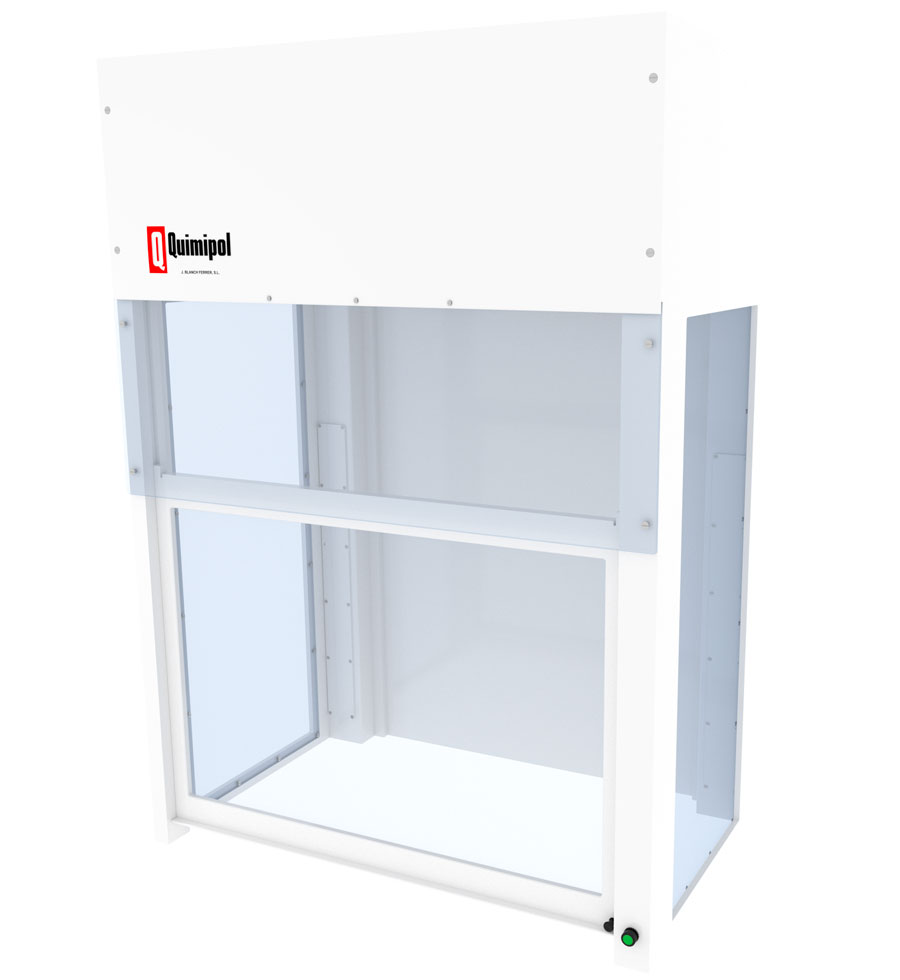

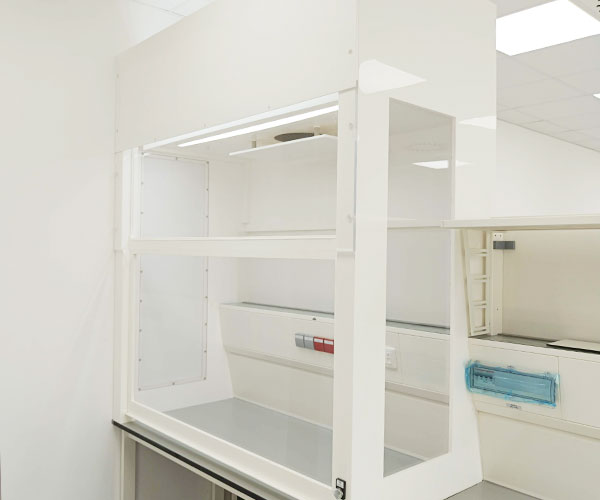

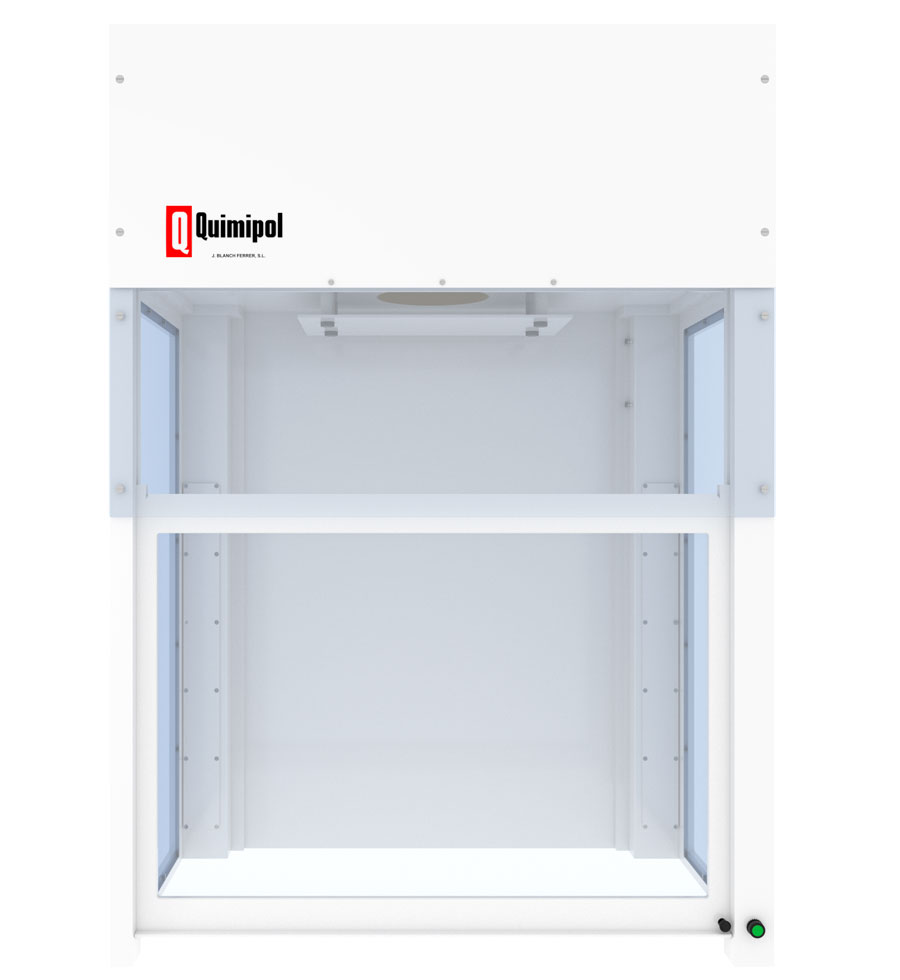

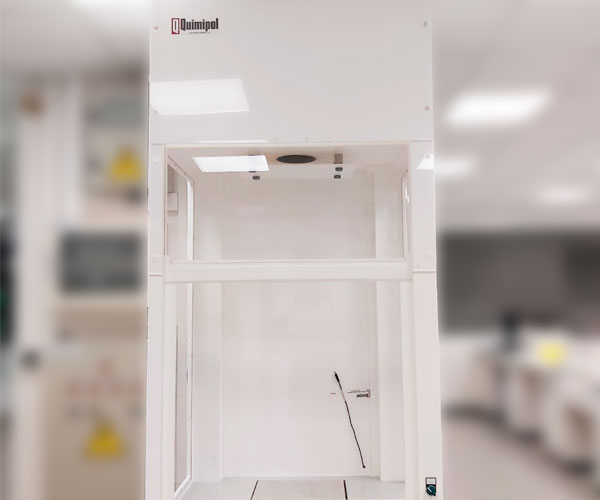

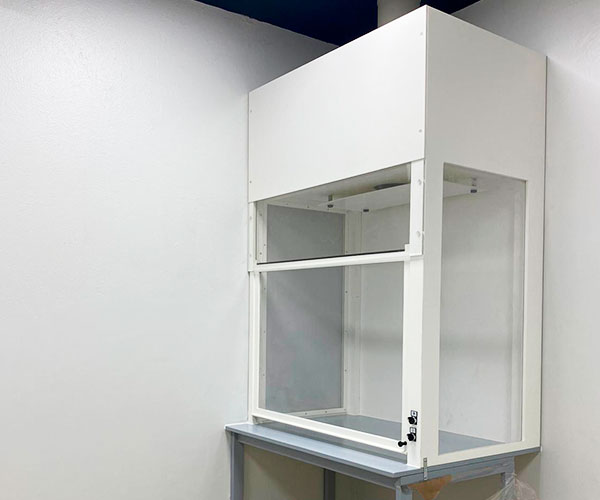

WALL PP HOUSINGS

Wall housings are characterised by having access from only one side. The two sides and the back are closed with highly shatter-resistant polycarbonate sheets. Very easily replaceable. The sides and the back can be opaque. Work envelope not included.

Standard equipment:

  • Interior waterproof light with button panel.
  • Start-up selector (Extraction System).
  • Flat diffuser in the apsiration port.
  • Guillotine with PP frame.
Reference Description L W H Ø
CAPPP900M PP Housing 900x750x1700 900 750 1700 160
CAPPP1200M PP Housing 1200x750x1700 1200 750 1700 200
CAPPP1500M PP Housing 1500x750x1700 1500 750 1700 250
CAPPP1800M PP Housing 1800x750x1700 1800 750 1700 250
CAPPP2100M PP Housing 2100x750x1700 2100 750 1700 2×250
CAPPP2400M PP Housing 2400x750x1700 2400 750 1700 2×250

*Dimensions in millimetres

REQUEST INFORMATION

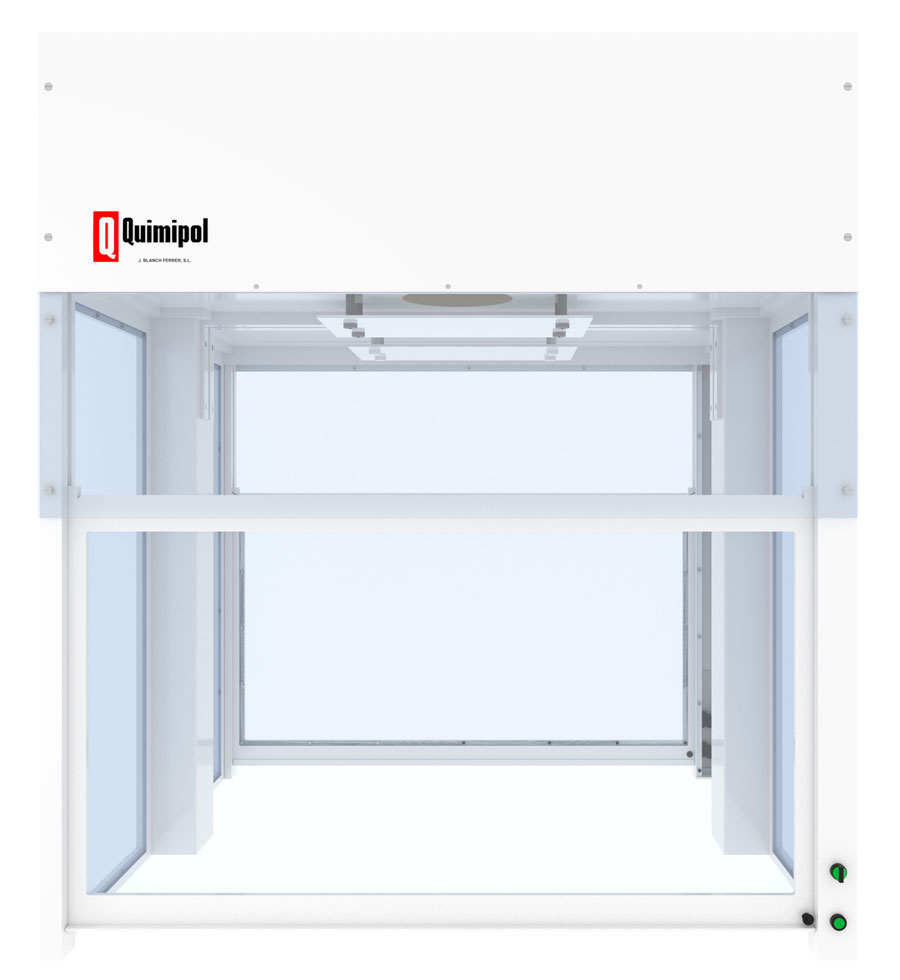

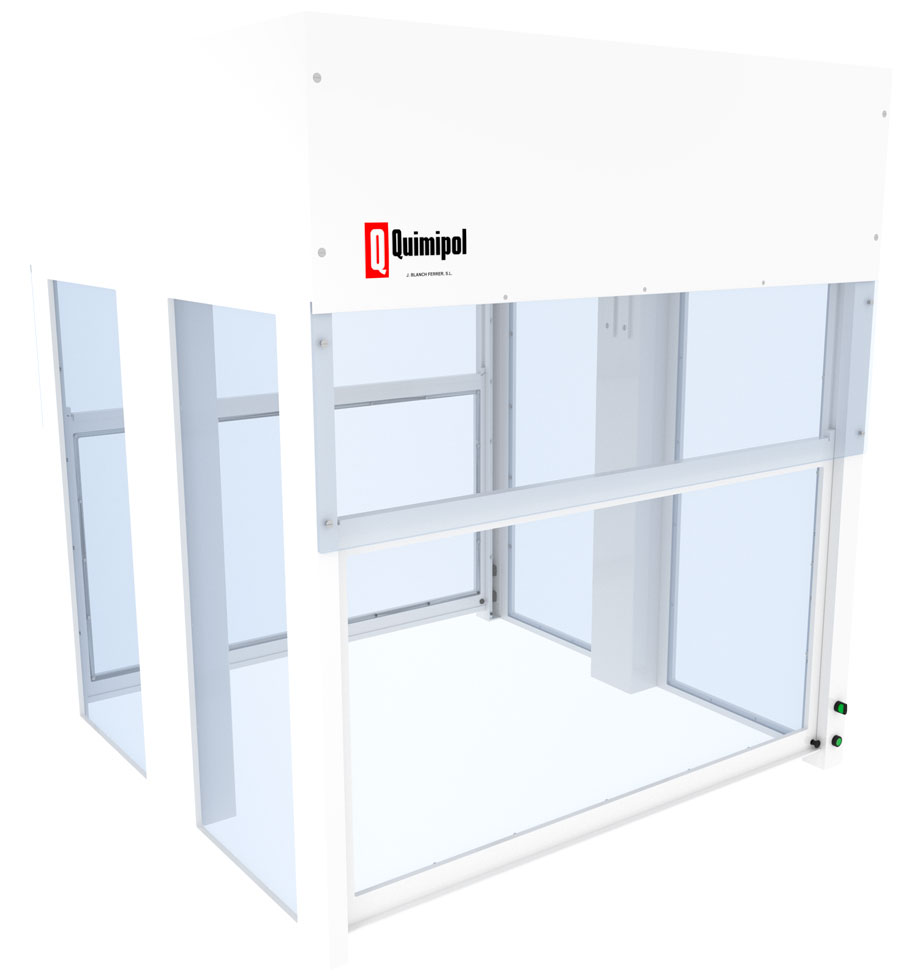

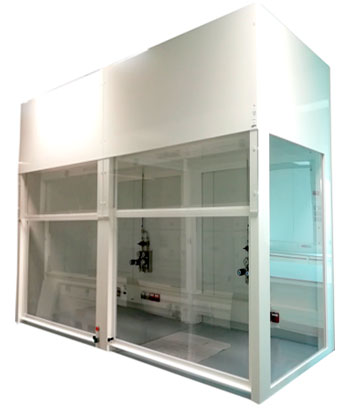

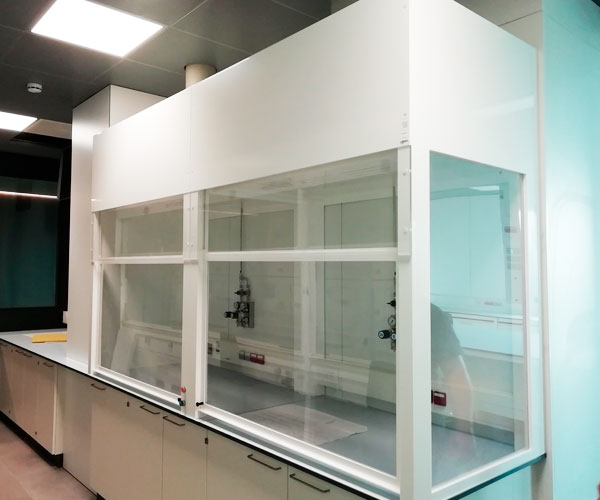

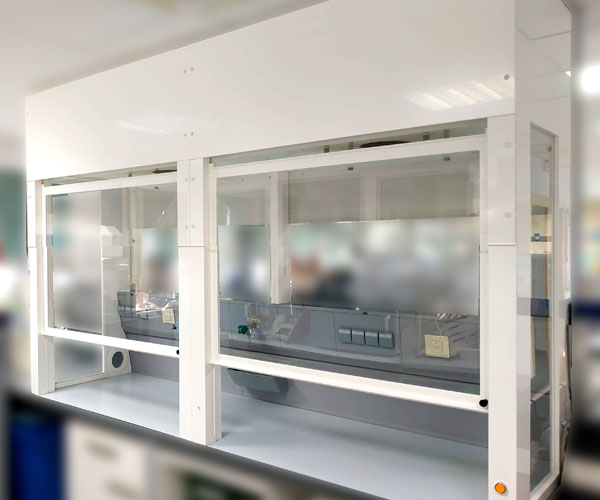

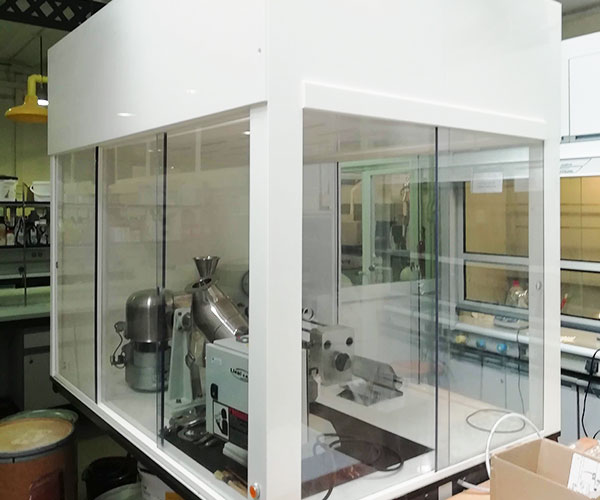

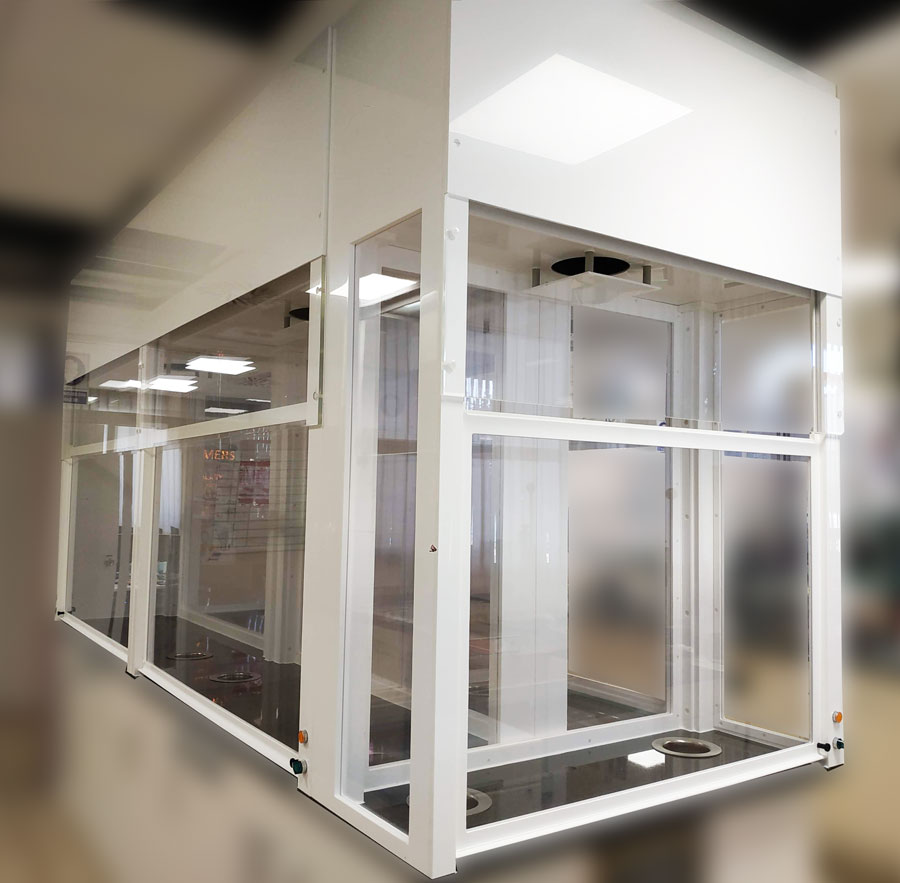

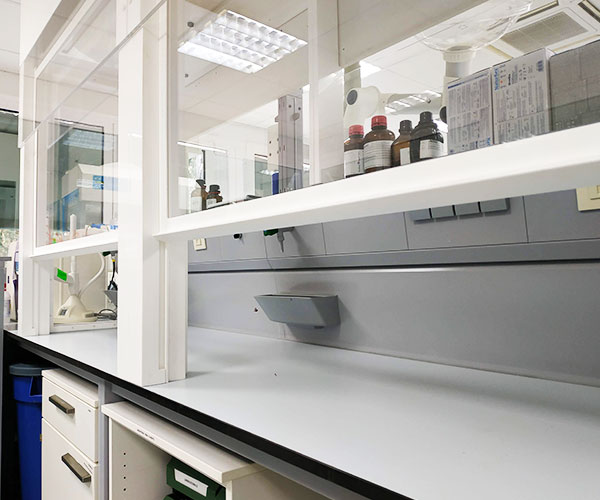

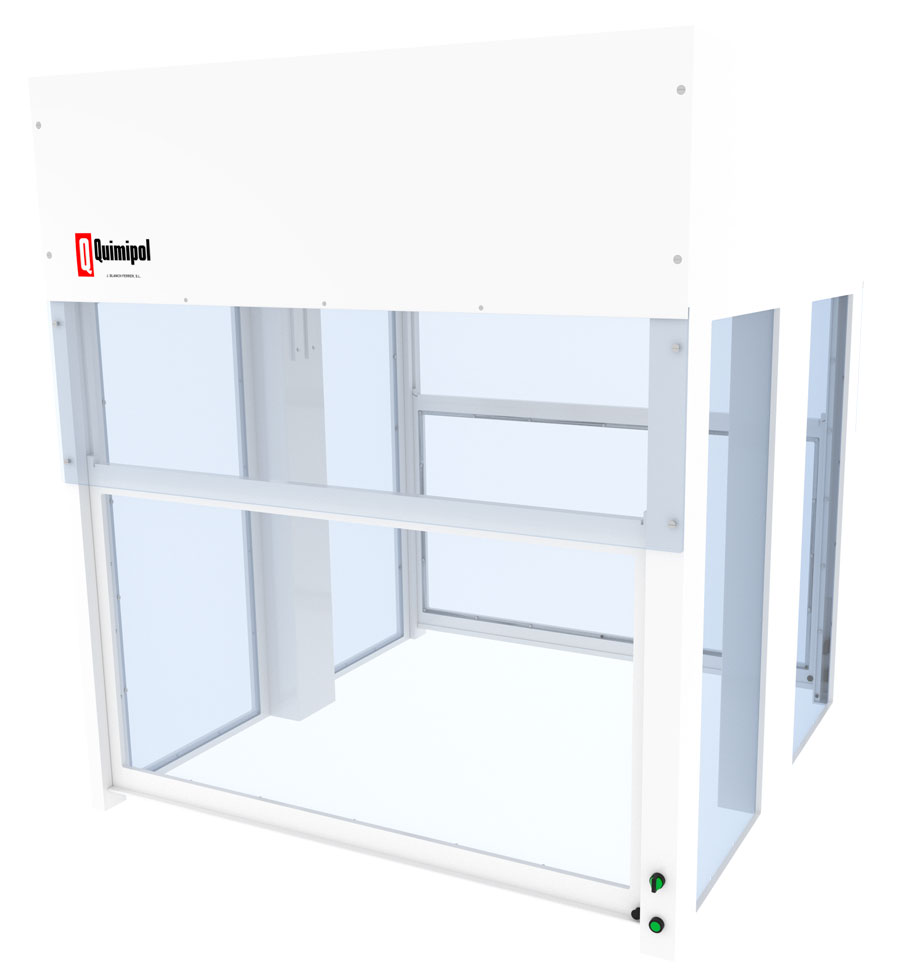

CENTRAL PP HOUSINGS

Central housings are characterised by access from both sides. They comprise two guillotines installed on opposite sides. This design allows an open interior space for working from both ends. The sides are closed with highly shatter-resistant polycarbonate sheets. Very easily replaceable. These can be opaque instead of transparent. Work envelope not included.

Standard equipment:

  • Interior waterproof light with button panel.
  • Start-up selector (Extraction System).
  • Flat diffuser in the apsiration port.
  • Guillotine with PP frame.
Reference Description L W H Ø
CAPPP900C PP Housing 900x1500x1700 900 750 1700 2×160
CAPPP1200C PP Housing 1200x1500x1700 1200 750 1700 2×200
CAPPP1500C PP Housing 1500x1500x1700 1500 750 1700 2×250
CAPPP1800C PP Housing 1800x1500x1700 1800 750 1700 2×250
CAPPP2100C PP Housing 2100x1500x1700 2100 750 1700 4×250
CAPPP2400C PP Housing 2400x1500x1700 2400 750 1700 4×250

*Dimensions in millimetres.
*Sliding doors available for front opening.
*Other sizes available.
