M-140 Fan at 1500rpm
| Max flow: | 405 m³/h | MOTOR | |
| Max pressure: | 34mmca | Power supply: | 380v |
| Inlet diameter: | 140mm | Power: | 0.06kW |
| Outlet diameter: | 140mm | RPM: | 1500 |
| Blade orientation: | Backward | No. poles: | 4 |
| Casing and turbine material: | PP | Efficiency level: | IE2 |
| Weight: | 6.5Kg | Protection: | IP55 |
| Sound pressure: | 56 dB | Anchoring: | B3 |
| *With free output at 1.5m. | |||
M-140 Fan at 3000rpm
| Max flow: | 615 m³/h | MOTOR | |
| Max pressure: | 51mmca | Power supply: | 380v |
| Inlet diameter: | 140mm | Power: | 0.09kW |
| Outlet diameter: | 140mm | RPM: | 3000 |
| Blade orientation: | Backward | No. poles: | 2 |
| Casing and turbine material: | PP | Efficiency level: | IE2 |
| Weight: | 6.5Kg | Protection: | IP55 |
| Sound pressure: | 60 dB | Anchoring: | B3 |
| *With free output at 1.5m. | |||

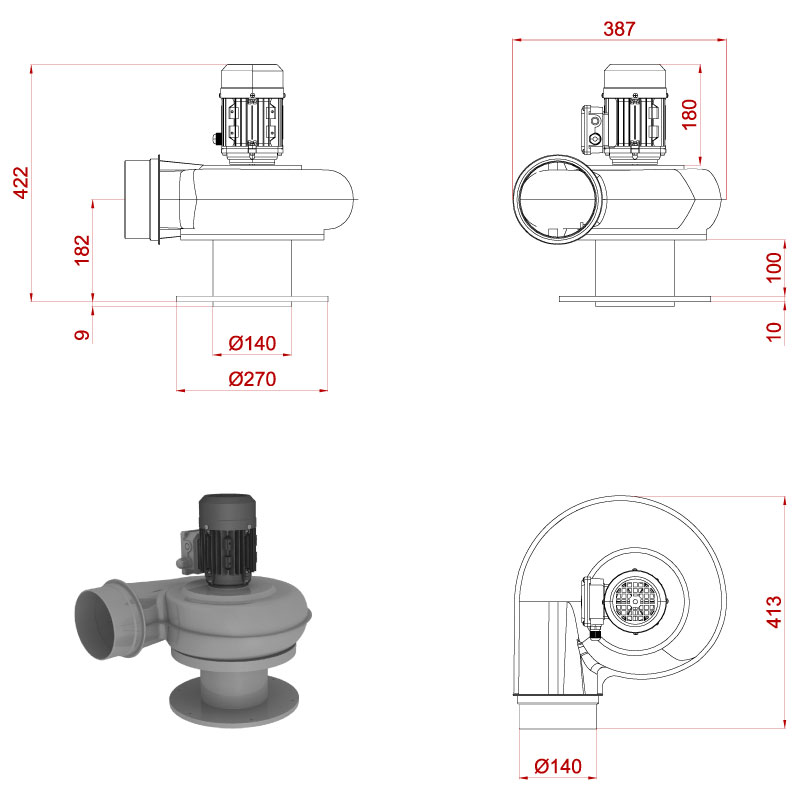

FAN DIMENSIONS
FLOW MODEL FAN
Fan accessories
Frequency inverter
Wall mounting bracket
Floor mounting bracket
Anti-bird grid
Expansion hat
Engine cover
Inspection register
Anti-vibration
Soundproof box
Fender grille
Coupling flange
Electrical panel
Isolator switch
Ventilation pipes and accessories
Flexible Sleeve
Flexible sleeve corrugated
Flexible Ventilation hose
Strap Clamp
Volume control damper
Volume control damper motorized 0º-90º
Flap trap
Reductions
T-Pieces 90º
T-Pieces 45º
End caps
Trims
Umbrella. Rain protection
Rod roll
Sampling piece
Differential pressure probes
Intumescent rings
Fire dampers
Silencer
Table of power values
M SERIES PP STANDARD FLANGE
| Description | Turbine speed r.p.m. | Motor power kW | Max. flow rate (m3/h) | Max. pressure (mmca) | Sound pressure level (dB) | Weight (Kg) | Max. intensity 230v (A) | Max. intensity 400v(A) |
| M-75 at 1500 rpm Flange | 1.500 | 0,06 | 110 | 6 | 52 | 3 | 0,6 | 0,25 |
| M-75 at 3000 rpm Flange | 3.000 | 0,09 | 210 | 25 | 64 | 3 | 0,8 | 0,31 |
| M-140 at 1500 rpm Flange | 1.500 | 0,06 | 405 | 34 | 56 | 6,5 | 0,8 | 0,37 |
| M-140 at 3000 rpm Flange | 3.000 | 0,09 | 615 | 51 | 60 | 6,5 | 0,8 | 0,31 |
| M-160 at 1500 rpm Flange | 1.500 | 0,25 | 830 | 20 | 54 | 10 | 1,7 | 0,76 |
| M-160 at 3000 rpm Flange | 3.000 | 0,37 | 1.600 | 70 | 69 | 10 | 2,6 | 0,95 |
| M-200 at 1000 rpm Flange | 1.000 | 0,25 | 1.500 | 13 | 62 | 15 | 2 | 0,79 |
| M-200 at 1500 rpm Flange | 1.500 | 0,37 | 2.400 | 37 | 66 | 15 | 2 | 0,96 |
| M-200 at 3000 rpm Flange | 3.000 | 1,5 | 3.300 | 150 | 81 | 24 | 9,37 | 2,9 |
| M-200VG at 1000 rpm Flange | 1.000 | 0,37 | 1.584 | 48 | 58 | 23 | 2,78 | 1,07 |
| M-200VG at 1500 rpm Flange | 1.500 | 0,55 | 2.400 | 72 | 69 | 23 | 3,7 | 1,41 |
*Sound pressure with free output at 1.5m.
